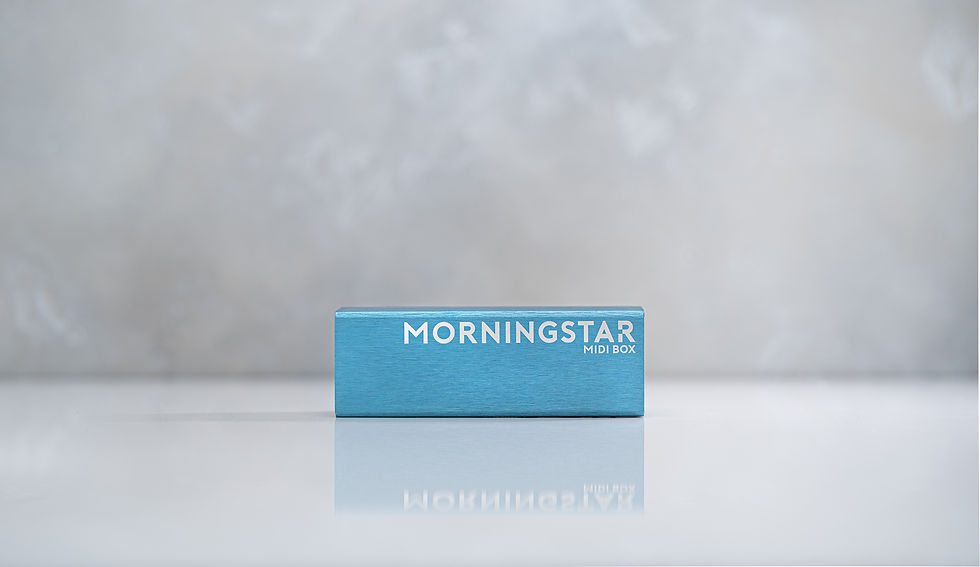

Morningstar MIDI Box

MIDI BOX
SU{ER COMPACT MIDI SPLITTER


THE SMALLEST MIDI BOX WITH THE MOST OUTPUTS

Designed from the ground up, the Morningstar MIDI Box offers you something special – many more outputs in a much smaller package.



Through a single 5-pin MIDI input, you can split your MIDI signal into 8 isolated 3.5mm TRS MIDI outputs. Your input MIDI signal can also continue to flow via the 5-pin MIDI Thru port.

Morningstar MIDI Box Front
MIDI Box Rear Home Page.jpg


8 ACTIVE MIDI OUTPUTS



MIDI is not meant to be split passively. Having a MIDI Box to actively split one MIDI input into multiple outputs ensures that your MIDI signal integrity is preserved and kept strong throughout your MIDI signal chain.


TIP/RING SWITCHABLE



MIDI outputs 1 to 6 are independently switchable, allowing you to send MIDI via the tip or ring according to your needs. This makes the Morningstar MIDI Box compatible with all MIDI devices regardless if they are designed to received MIDI via the tip or ring.


SUPER COMPACT & LIGHTWEIGHT



Slightly larger that a lipstick, this MIDI Box will fit on or under any pedalboard with ease and and add almost no weight to your setup. Dimensions and weight found under tech specs below.

MIDI Box Thru.jpg
MIDI Box In.jpg


5-PIN MIDI IN & THRU



Despite it's tiny size, the MIDI Box still has 5-pin MIDI in and thru. This make it compatible with MIDI controllers that have 5-pin MIDI outputs (which is most commonly used).

Morningstar MIDI Box LED Light


LED INDICATOR LIGHTS



2 LED lights let you know when MIDI is being received (blink) and when the MIDI Box is powered on.

3.5mm to 1/4 inch TRS Adaptor
3.5mm TRS to 5 Pin DIN5 Adaptor


3.5MM TRS ADAPTORS AVAILABLE
FOR EASE OF USE



Add-on option at just $3.90 each with free shipping


TECHNICAL SPECIFICATIONS



Dimensions:

117 x 40 x 40.5 mm

Powered by any of the following:

9-12V DC center negative (min 20mA)

Hardware:

Anodized aluminium enclosure

Power and MIDI Receive indicator LEDs

I/Os:

1 x 5-pin MIDI In

1 x 5-pin MIDI Thru
8 x 3.5mm TRS MIDI Out (1 to 6 are tip/ring switchable)



More information in the MIDI Box Manual
